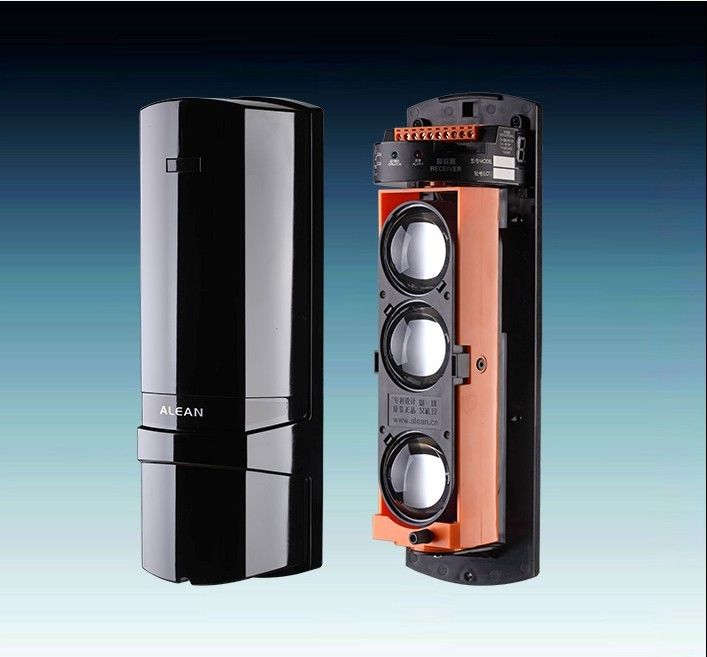

Photoelectric beam detector

Photoelectric beam detector

  • Photoelectric beam detector
Photoelectric beam detector
Product Details:
Place of Origin: China
Brand Name: ALEAN
Certification: CE
Model Number: ABE
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Price: USD25/piece
Packaging Details: Carton box
Delivery Time: 7 working days
Payment Terms: T/T Western Union
Supply Ability: 10000pairs per week
Contact Now
Detailed Product Description
Highlight:

photoelectric beam detector

Photoelectric beam detector ABE

Features:

NC/NO relay output, compatible with other brand burglar alarm systems such as HONEYWELL, BOSCH, Paradox, GE and DSC, etc.

Easy alignment with visual LED indicator.

PC engineering plastic material.

Resistant to rain, fog, snow and frost.

IP degree: IP65

Built-in automatic adjustable strong light filtering system (up to 50,000 LUX), Good performance against direct sunlight, completely against fluorescent and car light

AGC circuit, the detector will automatically increase sensitivity when faced harsh environment.

Horizontal / vertical optical angle can be easy to adjust

Parameter:

Model

ABE-50

ABE-100

ABE-150

ABE-200

ABE-250

Detecting distance(outdoor)

50m

100m

150m

200m

250

Detecting distance(indoor)

150m

300m

450m

600m

750m

Detection method

Simultaneous interruption of 3 infrared beams

Response speed

50-700msec

Number of beams

3 beams

Alarm output

Switch signal output(NO/NC)

Power and Voltage

DC12~24V ; AC11-18V

Current consumption

100mAMax.

Operating temperature

-25℃—55℃

Humidity

95% MAX

Tamper

NC. 1B contact output，DC30V/0.5AMax.

Exterior dimension

90mm*100mm*270mm

Weight

1.9kg

If you have any questions or inquirys please contact me.

Contact:ken[at]alean.cn

Tag:

beam detector,

beam sensor,

photoelectric beam detector
