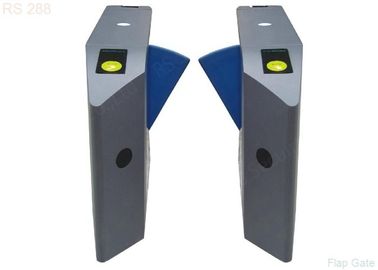

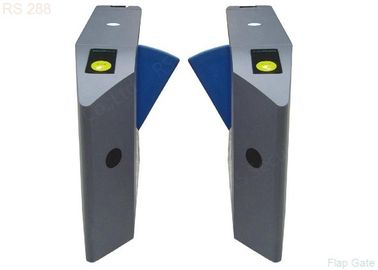

Metro Used Automatic Turnstiles Bi-deretion Stainless Steel Flap Gate For Access
Series:Flap Gate
Product Name:Security automatic Flap Gate
Model:RS 888
Size 1200*300*980mm
Direction: Bi-direction
Material:304 or 316 Stainless Steel
Protection grade: IP54
Chassis Thickness 1.5-2.0mm
Product Discription
Security automatic Flap Gate RS 188 ---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.
No. | Parameter | Value |
1 | Casing material | China standard 304#SS |
2 | Work voltage | AC220V±10% 50HZ±10% |
3 | Drive motor | DC 24V brush motor |
4 | Dimension | 1200*300*980MM |
5 | Wing length | 260mm |
6 | Max lane width | 600MM |
7 | Pass direction | one or bi-directional |
8 | Work environment | Indoor or Outdoor ( Shed house needed) |
9 | Work temperature | -10℃～70℃ |
10 | Relative humidity | ≤90%, no condensation |
11 | Barrier open and close time | 0.6S |
12 | Transit speed | 40 People/minute normal open , 25-30 people/minute normal close |
13 | time needed for running into work state when power on | |
14 | Auto reset time when there is breakdown | 10s |
15 | Normal work life | 3000000 times |
16 | Communication interface | RS485, |
17 | Input interface | relay signal, 12 V level signal, 12V pulse signal with pulse width ＞100ms, drive current ＞10mA |
| 18 | Model | RS 888 |
Function
1. Unit can be controlled and administered by remote control
2. This model is double wing flap gate, low noise, smaller casing, save space
3. Anti-pinch by mechanism and sensor If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
4.Anti-illegal in, anti-intrusion, auto close for reverse direction.
5. Anti-collision, gate closes when no valid signal is given.
6. Gates can be synchronous
7.uto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
8. Reset function by photocells,Anti-pinch function by photocells, ( 3 or 5 pairs sensors)
9. Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
10. One way or two way control
11 working method can be set by the buttons on the main panel
Extensible functions:
1. LED counter display
2. Casing and gate size can be lengthened
3.Lgic judgment by photocells (7pair or 9 pairs)
4.Speech reminder
5.normal close or normal open adjustable
6. Light, sound alarm
FAQ
1.Q:Can I know the difference between automatic type and manual type?
A:First, for manual type, it doesn't have electric control device. For automatic type, it can be compatible with card, finger print,barcode etc. Second, for manual type, it is single direction.
2.Q:Do you have any MOQ limit for tripod turnstile?
A:No, we don't have MOQ limit for tripod turnstile.
3.Q:What is the lead time for tripod turnstile?
A:For 10 units, we need 5-7 working days. For 20-50 units, we need 15 working days. For 100 units, we need 25 working days.
4.Q:Can I buy the mechanim of tripod turnstile?
A:yes, if you need, we can offer you.
5.Q:Do you offer guarantee for the products?
A:Yes, we offer one year warranty for the whole unit product and the accessories.
6.Q:Is OEM,ODM available?
A:Yes, it is available.
7.Q:Does the price include card reader and access control?
A:No. If you need, we can offer you the price.
