cctv power distribution box

24VAC 60W CCTV Power Supplies with 9 Channel , Alarm System Power Supply ODM

Qucik Details:

1. Output voltage: 24V

2. Output current: 2.5A

3. Power: 60W

4. Output type: 9 channels for 9 sets load

5. Certification: CE certified , IEC certified

6. Supply type: ODM

Descrition:

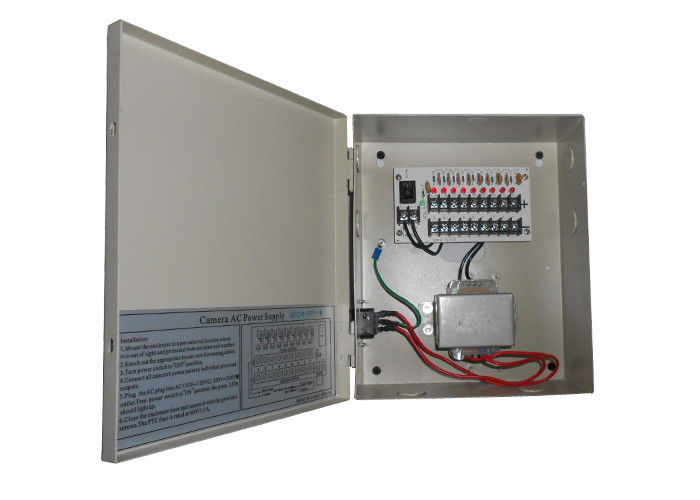

24VAC2.5A9P: 1 in 9 Out 24VAC 2.5Amp AC Power Supply for 9 Surveillance Cameras

The CCTV power supply is primarily designed for WUF-GV, PTZ and camera of CCTV system. It’s also used for access, building/house control, intrude alarm and other light-current. It is for desktop or wall-mounted installation.

Features:

• Power up to 9 CCTV CCTV surveillance cameras
• 24 Volts AC
• 2.5 Amp total output
• Max output current up to 0.65 Amp/Channel

• 9 individually PTC auto-reset fuses protected outputs
• Integral surge protection
• Individual LED power indication
• Individual PTC reset-able fuses
• Internal On/off safety power switch with LED indicator
• Beige metal housing

Technical specifications:

Competitive Advantages:

• This is one of the best 24VAC CCTV power supply boxes on the market for security cameras.

• We replace the cheap "glass fuse" with "PTC" Reset Fuses which will Auto Reset after you fix the short. You don't have to run around town try to find the replacement fuses. All you have to do is to fix the shorts.
• The red light shorts indicator helps you to know which camera is not working.
• Dependable and long lasting
• Warranty: 2 years
