deep sea controllers

1. Model Number :DSE5220
2. via  cell phones using the GSM SMS messaging system to advise of system alarms.
3. provides a number of control and monitoring features

We are authorized agent

Deep Sea Electronics PLC Comprehensive remote communiCAT-parts-partsion via optional RS232 port.? Provides

RS232 Modem link to PC via either PSTN line or GSM network (using a suitable modem).

The module can also signal Engineers via their cell phones using the GSM SMS messaging system to

advise of system alarms. Optional RS485 ‘Modbus’ output.

Using industry standard communiCAT-parts-partsion protocol allows full system integration into new and existing building

management and control schemes.

Module provides a number of control and monitoring features with expansion capabilities to meet with more

demanding specifiCAT-parts-partsions.? The ideal choice where a remote communiCAT-parts-partsions control system is specified

(when used with one of the comms output options above).

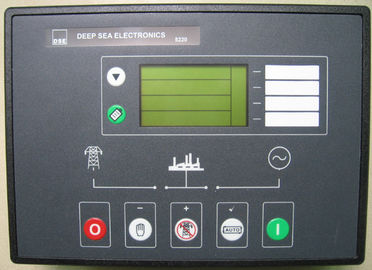

The DSE5200 series modules have been designed for front panel mounting. The module is fitted into the

cut-out with the fixing clips removed. These are then fitted from the rear. Connection is via locking plug and

socket connector. The Model DSE5220 is an Automatic Mains Failure Control Module.

The module is used to monitor a mains supply and automatically start a standby generator set. The module

also provides indiCAT-parts-partsion of operational status and fault conditions, automatically shutting down the genset

and indiCAT-parts-partsing failures by means of an LCD display, and appropriate flashing LED on the front panel.

Selected timers and alarms can be altered by the customer from the front panel. Alterations to the system

are made using the 810 interface and a PC.? This interface also provides real time diagnostic facilities.

Dimensions: 240mm x 172mm x 57mm

Panel Cutout: 220mm x 160mm ( 8.7” x 6.3”)
