Vehicle Security Anti-Theft Alarm System Real Time Car GPS Locator Tracking Device
Defaults Main features:
1. Free tracking
2. Real-time Positioning & Tracking
3. SOS Function & Power-cut Alert
4. Audio Monitoring
5. Geo-fence Alert & Over Speed Alert
6. ACC/Door/Trunk/bonnet/shock Alert
7. Remote controlling oil & circuit
8. Compatible with the original anti-theft alarm
9. Inbuilt Backup Battery, Unauthorized Dismantle Alert
10. GPS & A-GPS (LBS – location based service)
11. Real time uploads location information via time/distance interval
Specifications:
|
Dimension
|
137*75*29mm
|
|
Weight
|
750g
|
|
Working Voltage
|
DC:6.3~40V
|
|
Input Fuse
|
2A
|
|
Working Temperature
|
100mA
|
|
Operating Temperature
|
-40~85°C
|
|
Humidity
|
10% to 90%
|
|
CPU
|
TI:MSP430F5419(100MHz)
|
|
GSM Module
|
GSM Module: Simcom
Band:850/900/1800/1900MHz
Tally with: GSM phase 2/2+
-Class 4 (2W @ 850/900MHz)
-Class 1 (1W @ 1800/1900MHz)
Max RF Output: 33.0dBm±2dBm
Dynamic Input Range: -15 ~ -102dBm
Receiving delicacy: Class RBER≤2%(-102dBm)
Frequency Stability: > 2.5ppm
Max Frequency Deviation: ±0.1ppm
RMS Deviation: ≤5deg
|
|
GPS Module
|
GPS chip set: SiRF Star III
Frequency: L1, 1575.42 MHz
Number of Channel: 20
Sensitivity: To-159Bm Tracking, Superior Urban Canyon
Performance
Reacquisition: 0.1 sec, average
Hot boot: 2 sec., average
Warm boot: 38 sec., average
Cold boot: 44 sec., average
Altitude limit: 18000 m
Velocity limit: 515 m/s
|
|
Microphone
|
3.5mm Single track
|
|
Earphone
|
3.5mm
|
|
Current
|
Not working Current 16mA
working Current:60~150mA
Current of opening infrared of Camera at
night :100~200mA
Charging current: Max<500mA
|
|
Battery
|
Lithium battery :350mA( working time is about 3.5 hours)
|
|
Accessories
|
Device, Connecting cable ,GPS antenna ,GSM antenna,
Engine controller, SOS button, Microphone, horn
|
Main features:
1. Positioning and tracking:
through the on-line positioning platform or the cell phone to locate at any time,
and get the working status. You can choose the positioning Platform by yourself
2. Over Speed Alert:
When the target moves exceeding a preset speed the unit will send an SMS+Geo-
info to the authorized numbers
3. Geo-Fence Mode:
Set up a geo-fence for the unit to restrict its movements within a district.
The unit will send the message to the authorized numbers when it breaches the district
4. Auto track:
Auto track by SMS or online positioning platform; Mileage statistics; ACC checking
5. Real time Track by Time/Distance Interval:
Auto track by SMS or online positioning platform; Mileage statistics; ACC checking
6. Remote Self Failure Analysis:
Any error happens on the tracker, it can analysis itself and restart.
7. Power cut alert:
When tracker is cut off from the power, the tracker sends alert SMS to user
8. Remote controlling oil and circuit:
You can Cut off or turn on the oil & circuit remotely via SMS or Online whenever you want
9. GPS & A-GPS (LBS—location based service):
Using Global Satellite Positioning technology, LBS(Location Based Service) technology
(while it’s can’t location via GPS, the devices will get the location information via LBS)
10. Audio Monitor:
You can ring the GPS unit and simply listen in discreetly.(the GPS unit does not vibrate or ring )
11. SOS Function:
You can press the SOS alarm button to send an alert.
This will give the location to the registered phone numbers in case of an emergency.
The SOS function also allows you to talk into the GPS tracker &
make yourself heard on the receivers end with the mobile cell phone

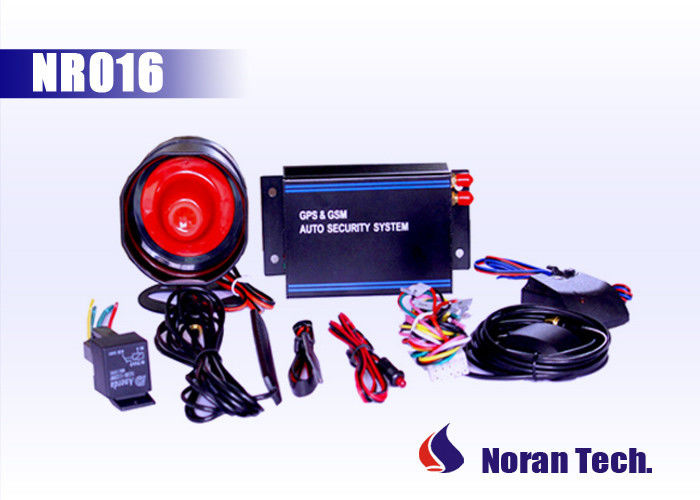

Package:
In box: 1 Tracker Device, 1 Wire, 1 Microphone, 1 GSM Antenna, 1 GPS
Antenna, 1 SOS Button, 1 Relay, 1 camera, 1 horn
Many business benefits include:
1. Offering fellow employees and clients visibility over service delivery vehicles
2. Monitoring driver’s behavior
3. Fuel anti-theft purpose
4. Providing detailed usage reports
5. All types of static and mobile vehicle GPS tracking and security
