M2M Cellular Modem

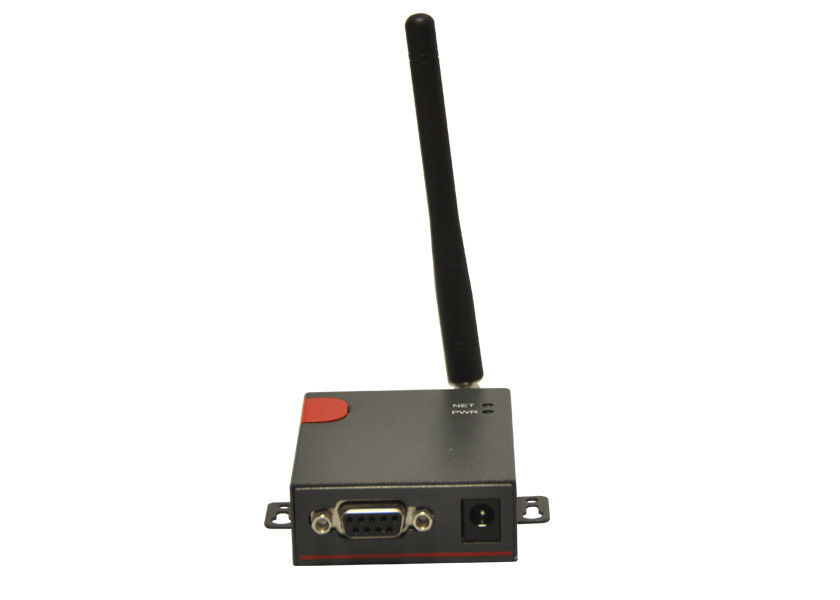

HSDPA 3G RS-485 terminal DTU , Cellular Industrial Modem for fire alarm system

Description

The WL-D803 3G serial Modem (also called DTU) can look similar to the common Modems / terminals. Wlink serial to 3G IP modem is a kind of cellular terminal device that provides data transfer function by by mobile HSPDA 3G network.It adopts high powered industrial 16/32 bits CPU and embedded

real time operating system.The cellular gateway has additional processing capability and built-in software which allows them to operate autonomously as self-managing communications devices.

It supports RS498  (or RS422, RS-232, TTL ) port that can conveniently and transparently connect one

device to a cellular network, allowing you to connect to your existing serial devices with only basic

configuration. Once configured, WLINK DTU provide ‘IP’ or internet communications for other devices which have limited or no built-in capability to manage a modem.

Highlight

• Optimized EMC design

• Standard PPP, TCP/IP and UDP/IP protocol

• Industrial pluggable terminal block

• Industrial CDMA/EDGE/GPRS wireless module

• Support APN and VPDN wireless private network

• Support short message service (SMS)

• Support transparent data transmission

• Support data service center with dynamic IP address

• Support LED status indication

• Wide range voltage input

• Smart power management

• External power on/off control

• Reliable, flexible and easy to deploy

Features

Specification

Cellular

• GSM/GPRS Protocol, 3GPP version 4
• Frequency Band: HSDPA 850/1900/2100MHz EDGE/GPRS/ GSM 2100/1900/900/850Mhz
• Output Power
• GPRS/GSM: 33dBm (Power Class4)
• GPRS/EDGE: Class 2, Class B
• Sensitivity:  GSM/GPRS 3GPP TS05.05(R99)
• IEEE 802.3u

Consumption

• Voltage: DC +5~26V (standard 12V/1A power adapter)
• SIM/R-UIM Card: 3V
• Consumption: Transfer mode: 70Ma/12v (Average), Idle mode: 17mA/12V (Max)

Interface

• Antenna: SMA-K(Female)
• Standard SIM/R-UIM interface
• Serial data interface: RS-232/RS-485/RS-422/TTL, DB9 connector
• Rate: 300-115200bps

Other

• Dimension: 70.5mm x 55.5m x 22mm  (not including antenna)
• Operation temperature: -30~+75℃
• Store temperature: -40~+85℃
• Related humidity: <95% (non-condensing)
• Guarantee: one year

Application:

Electric power industry:

• Electric remote meter reading
• Substation monitor
• Power line monitor
• Switch monitoring system on distribution network column

Water conservancy industry:

• Water quality monitor
• Reservoir gate remote control system solutions
• Water conservancy GPRS scheduling system application solutions
• Water pipe network monitoring system 5. Reservoir automatic monitoring system

Oil industry:

• Oil and gas well remote monitor
• GPRS remote oil field automation monitoring system
• Gas pipeline network monitoring system solutions

Environmental protection industry:

• Pollution source monitor
• Atmospheric environment monitor
•  Noise monitor
• Dust monitor

Agricultural applications:

• Greenhouse remote monitor
• Aquaculture farmers monitor
• Water pump monitor and control

Other industries:

• Warehouse monitor management
• Remote crane management system
• Industrial energy consumption monitoring
• Gas station GPRS data acquisition system
• GPRS weather information collection system

Competitive Advantage

• WLINK Router are Industrial grade design which can endure high and low temperature and other extreme application environment

• WLINK has ability to produce a quality product at a economic cost to meet the market and project requirement.

• Strong R&D Team who have 10+ year experience in M2M cellular field

• WLINK always provide the best pre-sale and after sale service to customer
