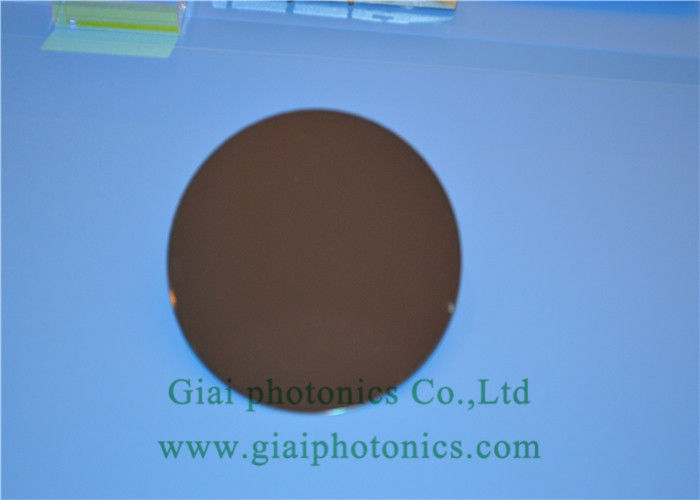

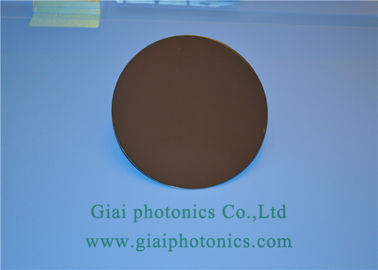

Name: 8μm - 12μm IR Sensor Ge Infrared Contact Lenses for CO2 Gas Detector
Brand: Alarms Series Technology Co., Limited
SKU: GA-IR6
Price: Negotiable USD
Availability: InStock

8μm - 12μm IR Sensor Ge Infrared Contact Lenses for CO2 Gas Detector

Product Details:

Place of Origin:	China
Brand Name:	GIAI
Certification:	ROHS / SGS
Model Number:	GA-IR6

Payment & Shipping Terms:

Minimum Order Quantity:	65 pcs
Price:	fob
Packaging Details:	Vacuum Packaging
Delivery Time:	42 working days after received your payment
Payment Terms:	T/T
Supply Ability:	253 pcs per month

Contact Now

Detailed Product Description

Product Name:	IR Sensor Ge	Back Focal Length:	8.14mm
AOI:	45 °	IR Coating:	IAD Process
Radius 1:	7.56mm	Wavelenghth Range:	8000-12000nm
Highlight:	ir lens

8μm - 12μm IR Sensor Ge Infrared Contact Lenses for CO2 Gas Detector

IR Sensor Ge

Specifications:

Diameter (mm)	20.00
Diameter Tolerance (mm)	+0.0/-0.2
Clear Aperture (%)	90
Effective Focal Length EFL (mm)	12
Back Focal Length BFL (mm)	8.14
Edge Thickness ET (mm)	4.77
Center Thickness CT 1 (mm)	4.50
Center Thickness CT 2 (mm)	1.50
Center Thickness Tolerance (mm)	±0.2
Centering (arcminutes)	3 - 5
Radius R1 (mm)	7.56
Radius R2 (mm)	12.80
Radius R3 (mm)	61.60
Surface Quality	80 - 50
Substrate	Ge
Focal Length Specification Wavelength (nm)	587.6
Coating Specification	IAD Process
Operating Temperature (°C)	-20 to 80
Type	Lens
Numerical Aperture NA	0.38
Wavelength Range (μm)	8-12
RoHS	Compliant
