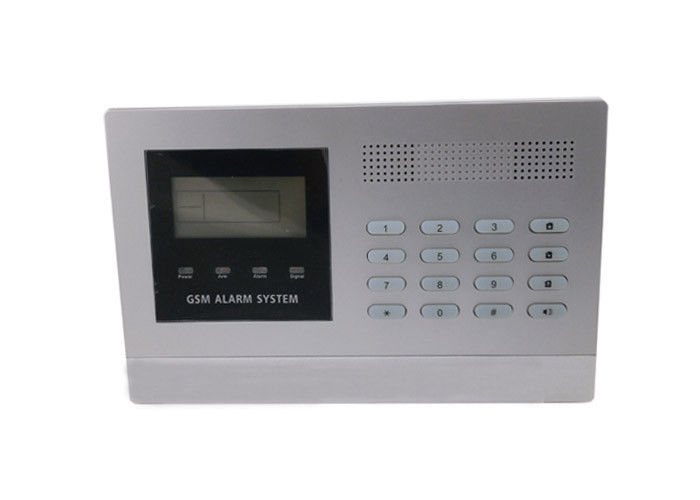

Wireless LCD Display GSM Home Alarm System with Low Power

Specifications:

GSM Home Alarm System

1.8 wired zones + 99 wireless zones,5 wireless remote controllers can be added.

2. LCD display, built-in calendar clock, convenient operation

3. Voice remind for operation, SMS control for arm/disarm, siren on/off.

4. SMS reminds for low power, power breaking and recovery.

5. Preset 2 groups of times for arm/disarm. 6 groups of phone numbers and 2 SMS numbers for notification of alarm.

6. 10 seconds’ pre-records to notify alarm. 1 key arm/disarm function.

7. 40 alarm events can be recorded. Multiple arming modes including remote-control timely arm & keypad delay arm to avoid inconvenience.

Parameter:

1. Encoding mode: PT2262, 4.7MΩ

2. Static current: ≤ 50mA/15V, Working current:≤ 300mA/15V

3. Transformer: 12V/1000MA

4. Wireless frequencies for option:315/433Mhz

5. DTMF Dial-up frequency deviation: ≤1.5%

6. Built-in AAA Ni-Mh rechargeable battery: 7.2V

7. GSM connection protocol Ademco, Contact ID

8. GSM frequencies: 850/900/1800/1900 MHz
