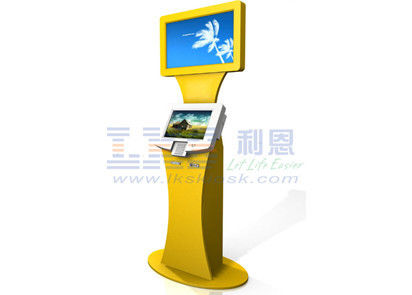

Bill self service Kiosk EMV And Magnetic Stripe VISA / Master Bank Card Read

Product Details:

Place of Origin:	China
Brand Name:	LKS / OEM / ODM
Certification:	CE, FCC
Model Number:	LKS807B

Payment & Shipping Terms:

Minimum Order Quantity:	5 Units
Packaging Details:	Film wrap, foam and wooden box
Delivery Time:	4-6 weeks upon payment
Payment Terms:	T/T in advance, Western Union, L/C
Supply Ability:	1000 units per month

Contact Now

Detailed Product Description

Material:	Cold Rolled Steel Or Stainless Steel Or Others	Material Feature:	Anti-vandal, Anti-dust,Anti-acid,Waterproof
Application:	Indoor	OS:	Windows 7 / Windows 8 / Linux
Display:	LCD, TFT, LED	Type Of Card To Be Dispensed:	SIM Card
Touch Screen:	IR / SAW / Capacitive	Warranty:	12 Months After Delivery
Power Supply:	110-120V, 220V-240V Or Others	Color And Logo:	Customizable
Function:	Self Payment Transactions,advertising Display,self Validation,card Issue And Dispensing	Type:	Top Up Dual Screen Kiosk
Type Of Card To Be Read:	Smart Card Like Magnetic Stripe,IC RFID;Contactless Card Like Mifare	Size Of The Banknote:	Width: 62or 78mm; Length:160-180mm
2D Barcode Type:	2D PDF417, QR Code(Model 1/2), DataMatrix(ECC200, ECC000, 050, 080, 100,140),Aztec, Maxicode, Etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 Of 5 ISBN, Code 93, UCC/EAN-128, GS1 Databar
Highlight:	self service payment kiosk

Bill self service Kiosk EMV And Magnetic Stripe VISA / Master Bank Card Read

Standard configuration:

21.5 inch monitor
21.5 inch monitor
17 inch IR touch screen
Industrious PC,2G RAM,500G HDD
Wireless module like 3G / GPRS,WIFI,Blurtooth
Speaker
Receipt printer
Card reader
Encrypted pinpad
Free standing dual screen cabinet

Specification is as following:

Components	Details
PC system	Industrial Board	Seavo/ Gigabyte/Advantech AIMB 562
	CPU	Intel Dual Core I5
	RAM	4 GB
	HDD	500G
	Interface	6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card
	PC Power Supply	HUNTKEY/Great Wall
LCD monitor	Screen Size	17 inch ( optional from 8inch to 65inch)
	Brightness	250cd/m2
	angle	horizontal 100°above;Vertical 80°above
	Contrast	1000:1
	Backlight tube life	more than 40,000hours
	Max. resolution	1280×1024
Touch screen	Screen Size	17 inch Diagonal ( optional from 8inch to 65inch)
	Resolution	4096x4096
	High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Cash acceptor	Validation Rate	98% or higher
	Banknote size	Width: 62or 71mm; Length:120-160mm
	Detection ability	High detection of forged bills
	Bill Escrow	one bill
	Cashbox capacity	1000 banknotes max
	Operating Voltage	12V DC or 24V AC
	Operating Temperature	0° C to 55 ° C (12 V DC platform); -18° C to +60 ° C (24 V AC platform)
Bank card reader	Status Display	LED indicator to show the power or communication status
	Card Type	ISO14443TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight
	Type	Support ISO14443
Wireless module	3G module	1, Compatible with HSUPA, HSDPA, UMTS, EDGE, GPRS, GSM network 2, Browsing Internet at high speed of 7.2Mbps downlink and 5.76Mbps uplink rate in max 3, Sending and receiving short messages 4, Managing contacts Interface: USB2.0, and USB1.1 compatible Data transmission: Transmission rate will be depended on the live network
Speakers	Features	Dual channel amplified speakers for Stereo ,8Ω 5W
Digital Power Supply	AC input voltage range	100~240VAC
	Frequency	50Hz to 60Hz
	AC input voltage range	100~240VAC
	Frequency	50Hz to 60Hz
Accessories	Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System	Windows 7 or Windows XP operation system without license
Free standing Cabinet	Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Package	Security Packing method with bubble foam and wooden case

Other Optional hardware components List is as following:

Dot matrix printer
Cash dispenser
Coin acceptor / dispenser
Palm vein scanner
Fingerprint scanner
Manual magnetic stripe swipe card reader
ID / Driver licence / Social insurance card double-side scanner
Passport scanner
Stainless metal keyboad with track ball
Digital signature pad
Cheque scanner / acceptor with MICR function

Application

Cinema
Hypermarket
Home supply store
Museum
Supermarket
Bank
VTM booth
ATM booth
Financial agency
Retailer store
Coffe shop
Park
Gymnasium
Conference lobby
Exibition
Coffe shop
Shopping Mall
Railway Station
Metro Station
Parking Lot
Bus station
Other Public area

Our Advantages:

Design for 24 / 7 Operation

Fixed on floor and lockable
No staff invloving
Ease-of-use,maintenance free
Inner air recycling design for heat and humidity control
Alarm system sensor with instant reporting function

Cost-saving solution

Integrated industrial level compenents from worldwide famouse brands
Design and production on our own
Two screen controls under only one PC
CE,FCC RoHS certification

The reason to choose LKS:

LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration;
LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
LKS has sheet metal and kiosk assembling factories,monthly productivity is more than 1,000 units;
LKS has 100% yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like ,overseas like Oscar.
