Name: Dog Repeller Remote Monitoring Long Range Ultrasonic Sensor High Precision 16mm T / R Pairs
Brand: Alarms Series Technology Co., Limited
SKU: MSO-AT1640H12R
Price: Negotiable USD
Availability: InStock

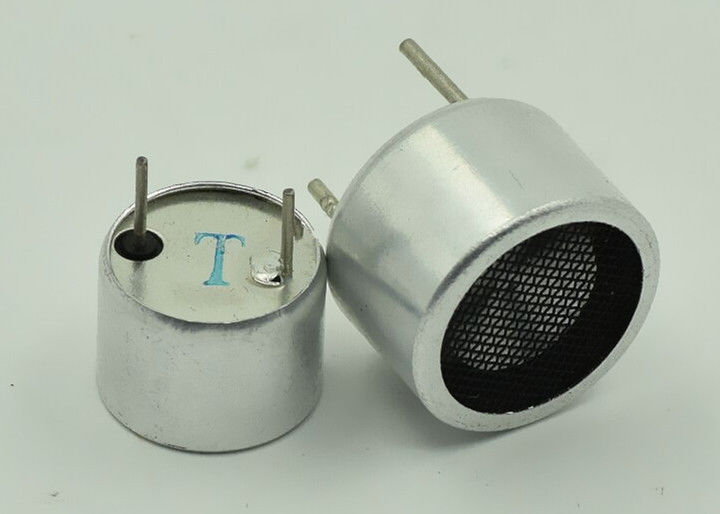

Dog Repeller Remote Monitoring Long Range Ultrasonic Sensor High Precision 16mm T / R Pairs

Product Details:

Place of Origin:	Jiangsu China
Brand Name:	MANORSHI
Certification:	ISO, CE, ROHS
Model Number:	MSO-AT1640H12R

Payment & Shipping Terms:

Minimum Order Quantity:	500 PCS
Price:	USD0.2-0.5 Per Piece
Packaging Details:	Export Standard Package
Delivery Time:	2-3 weeks
Payment Terms:	L/C, T/T, Western Union, By Paypal
Supply Ability:	1000000PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	Ultrasonic Sensor	House Material:	Plastic
Using Method:	Seperate Transmitter Or Receiver	Construction:	Open / Pins
Nominal Frequency:	40kHz	Measure Range:	0.2-15m
Highlight:	long distance ultrasonic sensor

Dog Repeller Remote Monitoring Long Range Ultrasonic Sensor High Precision 16mm T / R Pairs

Quick details:

1. Dimension: 16.2mm(D)*12.2mm(H)

2. Center frequency :40.0±1.0KHz

3. Using Method: Separate transmitter or receiver.

4. Construction:open structure type
5. Directivity Deg :60°±15° (-6dB)
6. Sensitivity:-68dB min
7. Capacitance :2500±20%pF

8. Sound Pressure Level :114dB min

9. Max.Input Voltage:80Vp-p

10. Typical Sensing Range : 0.2~15m
11. Operating Temperature :-20℃ ~+70℃
12. Storage Temperature:-40℃ ~+85℃

Drawing (mm)

Dog Repeller Remote Monitoring Long Range Ultrasonic Sensor High Precision 16mm T / R Pairs 0

Application

- Remote Control

- Automatic doors

- Burglar and disaster detection alarm

- Distance meter and range finder

Dog Repeller Remote Monitoring Long Range Ultrasonic Sensor High Precision 16mm T / R Pairs 1

The main function of the ultrasonic sensor are transmitting and receiving. Ultrasonic sensors provide easy method of distance measurement. defined as electronic devices that emit an acoustic wave beyond the upper range of human hearing called the audible range, between 20 hertz and 20 kilohertz and determine the distance between the sensor and an object based on the time it takes to send the signal and receive the echo. generic distance measurement, and commercial fish finders, among other applications.
