[Product Description]

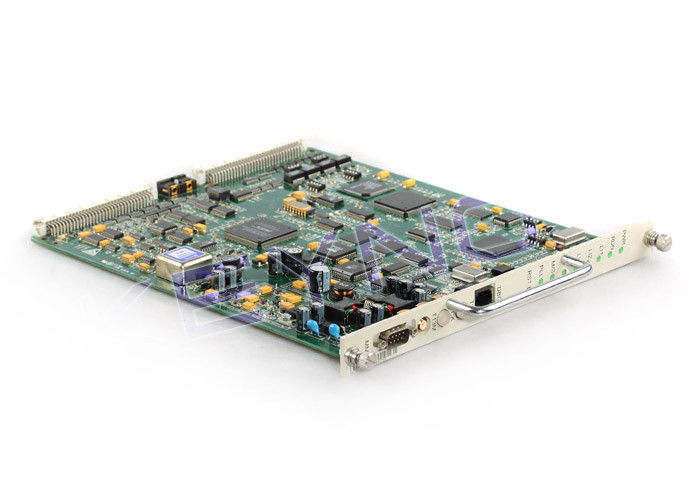

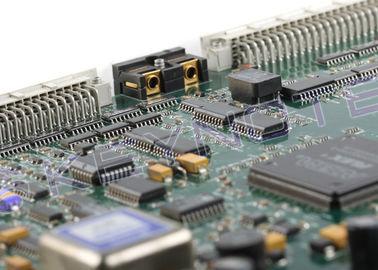

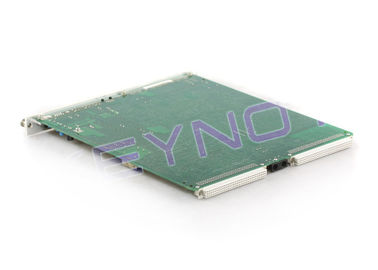

TMU - Timing/Transmission and Management Unit
Public resource TMU located in the BTS box, timing, transmission and management of entity BTS, the main function:
· provide multiplexing transmission, so that the limited resources to play a greater role; provide flexible networking mode, star, support BTS tree and chain type connection.
· provide the man-machine interface, operation and maintenance link, the execution of software download, fault management, configuration management, performance management and security management operation.
· Concentrated supply clock and hot backup.
· provide alarm signal input port, execute external alarm collection and control.
The host cabinet can be configured 2 TMU boards, heat backup clock source, and to extend the E1 interface function. The 1 piece of TMU board provides 4 E1 interface, 2 block is extended to 8 E1 interface. And cabinet configuration, only configuration TMU board in the main cabinet, deputy cabinet without configuration.
TMU interface
|
Identification
|
Explain
|
Type
|
specific role
|
|
RST
|
The reset button
|
/
|
TMU single board reset button
|
|
DBG
|
Ethernet port
|
/
|
Debugging network port
|
|
T2M
|
Clock output port
|
SMB
|
2MHz clock output port
|
|
FCK
|
Clock output port
|
SMB
|
Frame clock output port
|
|
T13M
|
Clock output port
|
SMB
|
13MHz clock output port
|
|
MMI
|

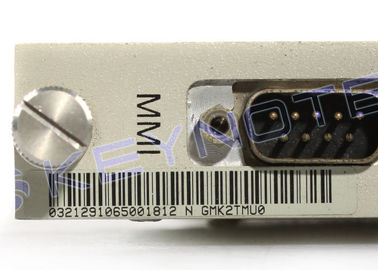

Man-machine interface
|
DB9
|
The proximal end maintenance station
|
TMU indicator light
|
Identification
|
Color
|
Explain
|
Specific instructions
|
|
PWR
|
Green
|
The power indicator light
|
Lighting: TMU is in a power on state.
Lights out: TMU is in power down states.
|
|
RUN
|
Green
|
Running lamp
|
Flash: The normal operation of TMU.
Lights out or Lighting: TMU abnormal operation.
|
|
LI1
|
Green
|
E1 line indicator
|
Lighting: The 1st line of E1 local alarm.
Flash: The 1st line of E1 remote alarm.
Lights out: The 1st line of E1 normal.
|
|
LI2
|
Green
|
E1 line indicator
|
Lighting: The 2nd line of E1 local alarm.
Flash: The 2nd line of E1 remote alarm.
Lights out: The 2nd line of E1 normal.
|
|
LI3
|
Green
|
E1 line indicator
|
Lighting: The 3rd line of E1 local alarm.
Flash: The 3rd line of E1 remote alarm.
Lights out: The 3rd line of E1 normal.
|
|
LI4
|
Green
|
E1 line indicator
|
Lighting: The 4th line of E1 local alarm.
Flash: The 4th line of E1 remote alarm.
Lights out: The 4th line of E1 normal.
|
|
M/S
|
Green
|
main preparation indicator light
|
Flash(1Hz): TMU for the motherboard.
Flash(0.5Hz): TMU prepared plate.
Lighting / Lights out / Irregular flashing: TMU fault
|
|
PLL
|
Green
|
The phase indicator
|
Lighting :The clock is in free state of oscillation.
Flash(4Hz): The clock in the capture state.
Flash(1Hz): The clock is locked.
Lights out :Clock phase anomaly
|
