Application:
Traffic access control for parking lots, toll gate, goods yard, railway crossing, commercial premise, apartment block access and so on.
Hot sale products
1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring broken.
3. Die-casting aluminum alloy motor, precision and good at thermal radiating.
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches(photoelectricity limit switch/ motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the infrared photocell for anti-bumping(optional)
9. Support for the external and internal vehicle loop detector
10. Traffic light interface
11. Wire control(switch signal)/remote control(418Hz)
12. RS485 communicational module to realize the intelligent management for the passing
Main Feature:
1) High system integration and powerful function;
2) Adopt elevating overtime and motor overheating protection to prevent abnormal damage of the gate;
3) Adopt Hall sensing device to conduct inductive limit control, non-contact work, never abrasion and offset;
4) Adopt imported large power relay with original packaging to ensure reliable operation of barrier gate.
5) Adopt imported photoelectric isolated protection circuit with original packaging to ensure signal integrity and resistance to strong interference.
6) Wireless remote control receiving module integrating one million groups of learning codes with high performance to ensure operation stability.
7) Adopt unique arc extinction processing circuit to ensure service life of control panel.
8) Adopt transformer with imported magnetic core and original packaging, be able to work stably under outdoor moist environment.
9) Provide extra 12V/100mA power supply, convenient to connect different types of limit detection device.
Advanced Features:
1. Clutch key can be used to open the clutch when power off.
2. Fan cooling machine reduce the motor temperature by high frequency using, never get heat-protecting. Unique temperature calefaction design for low temperature using, prevent freezing in cold weather.
3. Exactitude aluminum alloy die-casting motor base reduce the noise and joint abrasion to prolong the barrier gate working life.
4. Thimble type motor worm design for preventing plugging up in using.
5. Balance spring no noise and easy adjusting design
6. Double limit methods (electronic limit and motor sensor memory limit) for beam rises and falls.
Product Description:

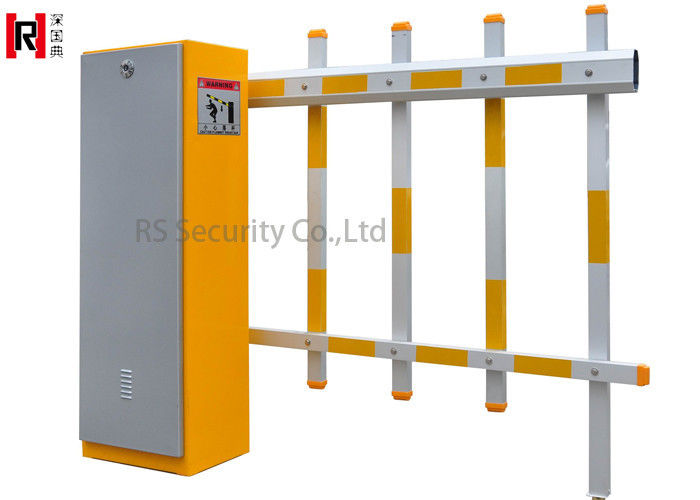

High Quality Automatic Barrier Gate
Standard barrier gate; Up to 6m arm length; Arm Speed is 1.2s, 3s, 5s(suggest use 3s); Outdoor and indoor.
It is a digital barrier gate which is suitable for modern management characterized by "safety, quickness, high efficiency and high quality". It is mainly used in parking lot, hotel, school, garden villa, enterprise and public institution, etc...
Technical Data:
1) Beam length: <=6m
2) Opening (Closing) time: 1s, 3s, 6s
3) Center height: 0.83m
4) Machine core working temperature: -40 degrees to +75 degrees
5) Electric working temperature: -40 degrees to +75 degrees
6) Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz
7) Rated power: 120W
8) Relative humidity: <=90%
9) Remote control distance: >=30m
10) Net weight: 70KGS
11) Protection grade: IP44
OEM Service
The orginal color of this model is orange. However we also provide color option for you according to your own need.
